| Λοιπά χαρακτηριστικά : |

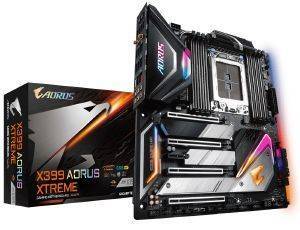

Τύπος: E-ATX Form Factor; 30.5cm x 26.9cm.Επεξεργαστές: AMD Ryzen Threadripper processor.Chipset: AMD X399.Μνήμες: 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory, 4 channel memory architecture, Support for DDR4 3600+(O.C.) / 3466+(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.Υποστήριξη δίσκων: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10.Θύρες επέκτασης: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2), 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2), 1 x PCI Express x1 slot.Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x OC PEG power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 2 x system fan/water cooling pump headers, 2 x digital(addressable) LED strip headers, 2 x digital(addressable) LED strip power select jumpers, 2 x RGB (RGBW) LED strip headers, 3 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C port, with USB 3.1 Gen 2 support, 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x BIOS switch, 1 x DualBIOS switch, 2 x temperature sensor headers, 1 x Clear CMOS jumper.Εξωτερικές συνδέσεις: 1 x power/reset button, 1 x Clear CMOS button, 1 x USB Type-C port, with USB 3.1 Gen 2 support, 1 x USB 3.1 Gen 2 Type-A port (red), 8 x USB 3.1 Gen 1 ports, 3 x RJ-45 ports, 2 x SMA antenna connectors (2T2R), 1 x optical S/PDIF Out connector, 5 x audio jacks.USB: CPU: 8 x USB 3.1 Gen 1 ports on the back panel, Chipset+ASMedia USB 3.1 Gen 2 / Controller: 1 x USB Type-C port with USB 3.1 Gen 2 support, available through the internal USB header / Chipset: 1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support, 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel, 4 x USB 3.1 Gen 1 ports available through the internal USB headers, 4 x USB 2.0/1.1 ports available through the internal USB headers.Γραφικά: Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies, Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies.Ενσωματωμένη κάρτα ήχου: Realtek ALC1220-VB codec, ESS9118EQ chip, High Definition Audio , 2/4/5.1/7.1-channel, Support for S/PDIF Out.Ενσωματωμένη κάρτα δικτύου: 2 x Intel GbE LAN chips (10/100/1000 Mbit)(LAN1)(LAN2), 1 x Aquantia GbE LAN chip(10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit)(LAN).Ασύρματη επικοινωνία: Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR, Support for 11ac wireless standard and up to 867 Mbps data rate.Συμβατό λειτουργικό σύστημα: Support for Windows 10 64-bit.Εγγύηση: 3 χρόνια. |
