| Λοιπά χαρακτηριστικά : |

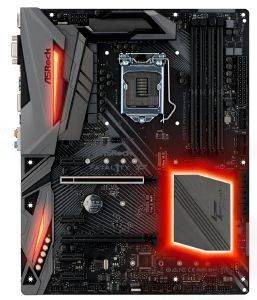

Τύπος: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm.Επεξεργαστές: Supports 8th Generation Intel Core Processors (Socket 1151), Supports CPU up to 95W, Digi Power design, 10 Power Phase design, Supports Intel Turbo Boost 2.0 Technology.Chipset: Intel H370.Μνήμες: Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 64GB, Supports Intel Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots.Υποστήριξη δίσκων: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug, 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).Θύρες επέκτασης: 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)), 4 x PCI Express 3.0 x1 Slots (Flexible PCIe), Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT), 15μ Gold Contact in VGA PCIe Slot (PCIE2).Εσωτερικές συνδέσεις: 1 x COM Port Header, 1 x TPM Header, 1 x Chassis Intrusion header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 1 x Addressable LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15μ Gold Audio Connector), 1 x Thunderbolt AIC Connector (5-pin), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection).Εξωτερικές συνδέσεις: 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.2, 1 x Optical SPDIF Out Port, 2 x USB 2.0 Ports (Supports ESD Protection), 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 2 x USB 3.1 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks).Γραφικά: Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics, DirectX 12, HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only), Three graphics output options: D-Sub, HDMI and DisplayPort 1.2, Supports Triple Monitor, Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz, Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), Supports HDCP with HDMI and DisplayPort 1.2 Ports, Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports.Ενσωματωμένη κάρτα ήχου: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, Nichicon Fine Gold Series Audio Caps, 120dB SNR DAC with Differential Amplifier, NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets), Pure Power-In, Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing on Front Out port, Individual PCB Layers for R/L Audio Channel, RGB LED, Gold Audio Jacks, 15μ Gold Audio Connector, Supports Creative Sound Blaster Cinema 5.Ενσωματωμένη κάρτα δικτύου: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.Εγγύηση: 2 χρόνια. |
