| Λοιπά χαρακτηριστικά : |

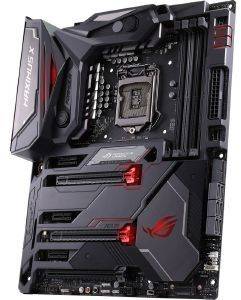

Τύπος μητρικής: ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ).Τύπος επεξεργαστή: Intel Socket 1151 for 8th Generation Core Processors.Chipset: Intel Z370.Μνήμη: 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory.Θύρες επέκτασης: 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4), 1 x PCIe 3.0/2.0 x16 (x4 mode, black), 3 x PCIe 3.0/2.0 x1.Υποστήριξη σκληρών δίσκων: Intel Z370 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s).Θύρες USB: ASMedia USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s), ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM), Intel Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), Intel Z370 Chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board).Πίσω I/O θύρες: 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 (red)Type-A, 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Clear CMOS button(s), 1 x USB BIOS Flashback Button(s), 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module.Εσωτερικές I/O συνδέσεις: 2 x Aura Addressable Strip Header(s), 2 x Aura RGB Strip Headers, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 3 x Chassis Fan connector(s) (3 x 4 -pin), 1 x H_AMP fan connector, 1 x W_PUMP+ connector (1 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Q-Connector), 1 x MemOK! button(s), 1 x Slow Mode switch(es), 1 x Reset button(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x EXT_Fan header, 1 x W_IN header, 1 x W_OUT header, 1 1 x Thermal sensor connector, 1 x Start button, 1 x USB 3.1 Gen 2 front panel connector.Γραφικά: Μέσω επεξεργαστη, Integrated Graphics Processor, Multi-VGA output support : HDMI/DisplayPort 1.2 ports, - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz, - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB.Eνσωματωμένη κάρτα ήχου: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220.Ενσωματωμένη κάρτα δικτύου: Intel I219V, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Bluetooth V4.2.Συμβατό λειτουργικό σύστημα: Windows 10 64bit.Εγγύηση: 3 Χρόνια. |
