| Λοιπά χαρακτηριστικά : |

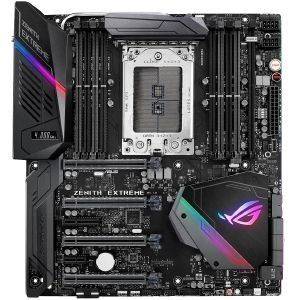

Form Factor: Extended ATX Form Factor 30.5 x 27.7 cm.Υποδοχή CPU: AMD Socket TR4 για AMD Ryzen Threadripper επεξεργαστές. Υποστηρίζει CPU μέχρι 16 cores.Socket: TR4.Chipset: AMD X399.Υποστήριξη RAM: AMD Ryzen Processors: 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC και non-ECC, Un-buffered. Υποστηρίζει Quad Channel αρχιτεκτονική.Multi-GPU Support: Υποστήριξη NVIDIA 4-Way SLI και AMD 4-Way CrossFireX.Θύρες επέκτασης: AMD Ryzen Threadripper επεξεργαστές: 4x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8). AMD X399 chipset: 1x PCIe 2.0 x4, 1x PCIe 2.0 x1.Αποθήκευση: AMD Ryzen Threadripper επεξεργαστές: 2x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD), 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), 1x U.2 port. AMD X399 chipset: 6x SATA 6Gb/s θύρες, υποστηρίζει Raid 0, 1, 10.Θύρες USB: AMD Ryzen Threadripper επεξεργαστές: 8x USB 3.1 Gen 1 θύρες (8 στο πίσω πανελ, μπλέ). AMD X399 chipset: 4x USB 3.1 Gen 1 θύρες (4 at mid-board).AMD X399 chipset: 2x USB 2.0 θύρες (Type-A + USB Type-CTM, 2 at mid-board). AMD X399 chipset: 1x USB 3.1 Gen 2 front panel connector θύρες ASMedia USB 3.1 Gen 2 controller: 2x USB θύρες (2 στο πίσω πανελ, Type-A + USB Type-CTM).ROG λειτουργίες: Clear CMOS button, ROG RAMCache II, ROG CPU-Z, ROG CloneDrive, Pre-mounted I/O Shield, Overwolf, GameFirst IV, Extreme Engine Digi+, ROG Extreme OC kit, KeyBot II, ROG RAMDisk, Extreme Tweaker, USB BIOS Flashback, Overclocking Protection.Πίσω θύρες: 1x LAN (RJ45), 1x USB 3.1 Gen 2 (black)USB Type-CTM, 1x USB 3.1 Gen 2 (red)Type-A, 8x USB 3.1 Gen 1 (blue), 1x Optical S/PDIF out, 1 x Clear CMOS button, 1x USB BIOS Flashback Button, 1x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1), 5x LED-illuminated audio jacks, 8 x USB 3.1 Gen 1 (blue), 1 x USB 3.1 Gen 2 (red)Type-A, 1 x USB 3.1 (black)USB Type-CTM.Εσωτερικές θύρες: 1x Aura Addressable Strip Header, 1x ReTry jumper, 1x Safe Boot jumper, 1x U.2 port, 2x Aura RGB Strip Headers, 2x USB 3.1 Gen 1 connectors (υποστηρίζει επιπλέον 4 USB 3.1 Gen 1 θύρες), 1x USB 2.0 connector (υποστηρίζει επιπλέον 2 USB 2.0 θύρες), 1x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (υποστηρίζει SATA & PCIE SSD), 6x SATA 6Gb/s connectors, 1x CPU Fan connector, 1x CPU OPT Fan connectors, 2x Chassis Fan connectors, 1x H_AMP fan connector, 1x W_PUMP+ connector, 2x 8-pin EATX 8 V Power connector, 1x 24-pin EATX Power connector, 1x Front panel audio connector (AAFP), 1x System panel (Q-Connector), 1x 5-pin EXT_FAN(Extension Fan) connector, 1x Slow Mode switch, 2x Thermal sensor connector, 1x LN2 Mode header, 1x EZ Plug connector (4-pin Molex power connector), 1x Reset button, 1 x LN2 Mode switch, 1 x LN2 Mode jumper, 1x Safe Boot button, 1x ReTry button, 1x U.2 connector, 1x Slow Mode jumper, 1x System panel connector, 1x PCIe x16 lane switch, 2x T_Sensor Connector, 1x W_IN header, 1x W_OUT header, 1x W_FLOW header, 1x Start button, 1x USB 3.1 Gen 2 front panel connector, 1x PCIe x16 Lane Switch, 1x 9 pin Monoblock sensor.Lan: Intel I211-AT, 1 x Gigabit LAN Controller, Anti-surge LANGuard, ROG GameFirst IV.Ασύρματη σύνδεση: Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad, υποστήριξη MU-MIMO, υποστηρίζει dual band frequency 2.4/5 GHz+ 60GHz. Έως 4600Mbps ταχύτητα μεταφοράς. Bluetooth V4.1.Ήχος: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220. Impedance sense for front and rear headphone outputs. Υποστηρίζει: Jack-detection, Multi-streaming, Front Panel Jack-retasking. Υψηλής ποιότητας 120 dB SNR stereo έξοδος αναπαραγωγής και 113 dB SNR είσοδος ηχογράφησης. ESS ESS9018Q2C.Υποστηρίζει έως 32-Bit/192kHz playback. Οπτική S/PDIF έξοδος στο πίσω πάνελ. Sonic Radar III και Sonic Studio III.Εγγύηση: 3 έτη. |
