| Λοιπά χαρακτηριστικά : |

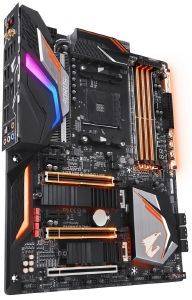

Τύπος: ATX Form Factor.Επεξεργαστές: AMD Ryzen.Chipset: AMD Χ470.Μνήμες: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.Υποστήριξη δίσκων: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support), (M2B_SOCKET) , 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10.Θύρες επέκτασης: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots.Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x digital LED strip headers, 2 x digital LED strip power select jumpers, 2 x RGB (RGBW) LED strip headers, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C port, with USB 3.1 Gen 2 support, 2 x USB 3.1 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper, 1 x OC button, 1 x BIOS switch, 1 x DualBIOS switch, 2 x temperature sensor headers.Εξωτερικές συνδέσεις: 1 x power/reset button, 1 x Clear CMOS button, 2 x MMCX antenna connectors (2T2R), 6 x USB 3.1 Gen 1 ports, 1 x USB Type-C port, with USB 3.1 Gen 2 support, 1 x USB 3.1 Gen 2 Type-A port (red), 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks.Γραφικά: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies, Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies.Ασύρματη επικοινωνία: Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5, Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate.Ενσωματωμένη κάρτα ήχου: Realtek ALC1220 codec, ES9018Q2C chip, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out.Ενσωματωμένη κάρτα δικτύου: Intel GbE LAN chip (10/100/1000 Mbit).Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit, Microsoft Windows 7 64-bit.Εγγύηση: 3 χρόνια. |
