| Λοιπά χαρακτηριστικά : |

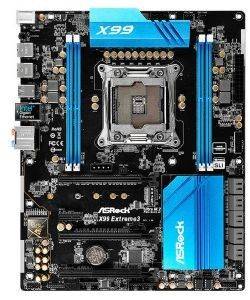

Τοποθέτηση: ATX.Υποδοχή CPU: LGA 2011-3.Υποστηριζόμενοι Επεξεργαστές: Υποστηρίζει Intel Core i7 και Xeon 18-Core επεξεργαστές, LGA 2011-3 Socket. Υποστηρίζει τεχνολογία Intel Turbo Boost 2.0 και Untied Overclocking.Chipset: Intel X99.Υποδοχές Μνήμης: 4 x DIMM, max. 64GB, DDR4. 2933+(OC)/2800(OC)/2400(OC)/2133/1866/1600/1333/1066 MHz, non-ECC, un-buffered memory. Υποστηρίζει αρχιτεκτονική Quad channel. Υποστηρίζει Intel Extreme Memory Profile (XMP).Υποστήριξη Καρτών Γραφικών: 2 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @ x16 mode), 1 x PCI Express 2.0 x16 Slot (PCIE4 @ x4 mode), 1 x PCI Express 2.0 x1 Slot. Σε επεξεργαστές με 28 lanes, η θύρα PCIE2 είναι σε λειτουργία x8.Υποστήριξη Multi-GPU: Υποστηρίζει AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX, NVIDIA Quad SLI and SLI.Υποστήριξη Δίσκων: 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel? Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SSATA3_2 connector is shared with Ultra M.2 Socket) RAID is supported on SATA3_0 ~ SATA3_5 ports only. 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).Εσωτερικές Συνδέσεις: 1 x COM Port Header, 1 x TPM Header, 1 x Power LED Header, 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin), 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control), 1 x Power Fan Connector (3-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x HDD Saver Connector, 1 x PCIe Power Connector, 1 x Front Panel Audio Connector, 1 x Thunderbolt AIC Connector, 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)), 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).Εξωτερικές Συνδέσεις: 1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, 1 x Optical SPDIF Out Port, 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1 x Clear CMOS Switch, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone.BIOS: 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliant wake up events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment.Λογισμικό: ASRock A-Tuning, ASRock Disk Health Report, ASRock USB Key, ASRock APP Charger, ASRock XFast LAN, ASRock XFast RAM, ASRock Restart to UEFI.UEFI: ASRock Full HD UEFI, ASRock Instant Flash, ASRock Internet Flash, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Easy RAID Installer, ASRock Easy Driver Installer.Κάρτα δυκτίου: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I218V. Υποστηρίζει Wake-On-LAN, Lightning/ESD Protection (ASRock Full Spike Protection), Energy Efficient Ethernet 802.3az, PXE.Κάρτα ήχου: 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection (ASRock Full Spike Protection), Supports Purity Sound 2, Nichicon Fine Gold Series Audio Caps, 115dB SNR DAC with differential amplifier, TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets), Direct Drive Technology, EMI shielding cover, PCB isolate shielding, Υποστήριξη DTS Connect.Συμβατότητα λειτουργικού συστήματος: Microsoft Windows 8.1 32-bit/8.1 64-bit/8 32-bit/8 64-bit/7 32-bit/7 64-bit. |
