ASROCK Z77 WS 134024857
Εξαντλημένο
Εξαντλημένο
ΕΞΑΝΤΛΗΜΕΝΟ

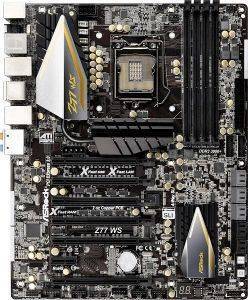

ASROCK Z77 WS
134024857
ΓΕΝΙΚΗ ΠΕΡΙΓΡΑΦΗ
ΑΝΑΛΥΤΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
Η ASROCK Z77 WS θεωρείτε απο τις δυνατότερες μητρικές πλακέτες της νέας γενιάς του Z77 chipset της Intel. Διαθέτει πληθώρα χαρακτηριστικών και την ποιότητα και αξιοπιστία που έχει αποκτήσει όλα αυτά τα χρόνια η ASROCK κατασκευάζοντας μητρικές.
ΠΡΟΒΟΛΗ ΟΛΗΣ ΤΗΣ ΠΕΡΙΓΡΑΦΗΣ
| Μέγεθος : | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm. |
| Socket : | LGA1155. |
| Επεξεργαστής : | Supports 3rd and 2nd Generation Intel? Core? i7 / i5 / i3 in LGA1155 Package, Digi Power Design, 8 + 4 Power Phase Design, Supports Intel? Turbo Boost 2.0 Technology, Supports Intel? K-Series unlocked CPU, Supports Hyper-Threading Technology. |
| Chipset : | Intel Z77. |
| Υποδοχή VGA : | 5 x PCI Express 3.0 x16 slots (PCIE2: x16 mode or PCIE1/PCIE3/PCIE5/PCIE7: x16/0/16/0 or x8/8/8/8 mode). |
| Memory : | Dual Channel DDR3 memory technology, 4 x DDR3 DIMM slots, Supports DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory, Max. capacity of system memory: 32GB, Supports Intel? Extreme Memory Profile (XMP) 1.3 / 1.2 |
| Storage : | 2 x SATA3 6.0 Gb/s connectors by Intel Z77, 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, 4 x SATA2 3.0 Gb/s connectors by Intel Z77. |
| Λοιπά χαρακτηριστικά : | 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x Ready-to-Use USB 2.0 Ports, 1 x eSATA3 Connector, 8 x Ready-to-Use USB 3.0 Ports, 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED), 1 x IEEE 1394 Port, 1 x Clear CMOS Switch with LED, HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone. 1 x IR header, 1 x CIR header, 1 x COM port header, 1 x HDMI_SPDIF header, 1 x IEEE 1394 header, 1 x Power LED header, 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin), 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin), 1 x Power Fan connector (3-pin), 24 pin ATX power connector, 8 pin 12V power connector, SLI/XFire power connector, Front panel audio connector, 3 x USB 2.0 headers (support 6 USB 2.0 ports)μ 2 x USB 3.0 headers (support 4 USB 3.0 ports), 1 x Dr. Debug with LED, 1 x Power Switch with LED, 1 x Reset Switch with LED, 1 x Clear CMOS Switch with LED. |
| Κάρτα ήχου : | 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec). |
| LAN : | PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Broadcom BCM57781 |
| VGA onboard : | Intel HD Graphics 2500/4000, DirectX 11. (Supported only with processors which are GPU integrated). |
