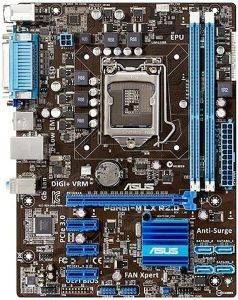

ASUS P8H61-M LX R2.0 134024818
Εξαντλημένο
This motherboard supports the Intel 3rd/2nd generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1155 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics out with dedicated chipsets, 2-channel (2 DIMMs) DDR3 memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd/2nd generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world. The Intel H61 Express Chipset is a single-chipset design to support the new 1155 socket Intel 3rd/2nd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. It provides improved performance by utilizing serial point-to-point links, which allows increased bandwidth and stability.
| Μέγεθος : | uATX Form Factor9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm ). |
| Socket : | Socket 1155. |
| Επεξεργαστής : | Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors. |
| Chipset : | Intel H61(B3). |
| Υποδοχή VGA : | Integrated Graphics Processor, 1 x PCIe 3.0/2.0 x16. |
| Memory : | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel. |
| Storage : | 4 x SATA 3Gb/s ports. |
| Λοιπά χαρακτηριστικά : | 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x D-Sub, 1 x LAN (RJ45) port(s), 4 x USB 2.0, 1 x COM port(s), 1 x Parallel port, 3 x Audio jacks. 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 4 x SATA 3Gb/s connector(s), 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Internal speaker connector(s), 1 x System panel. |
| VGA onboard : | Integrated Graphics Processor, VGA output support : RGB port - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz, Supports Intel? Quick Sync Video |
| LAN : | Realtek, 1 x Gigabit LAN Controller. |
| Κάρτα ήχου : | Realtek ALC887 8-Channel High Definition Audio CODEC. |
