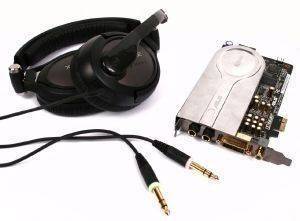

Η νέα κάρτα ήχου από την ASUS, η Xonar Xense One και το πακέτο Sennheiser PC 350 Xense Edition, είναι αποτέλεσμα συνεργασίας της Asus με την Sennheiser. H Xonar Xense αποτελεί τον ιδανικό συνδυασμό με τεχνολογία αιχμής κάρτας ήχου και ακουστικών υψηλής ποιότητας που το κάνει ιδανικό για τους σοβαρούς gamers. Ο ήχος στα παιχνίδια γίνετε ποιο ζωντανός από ποτέ και σας προσφέρει απαράμιλλη ηχητική εμπειρία πού είναι βέβαιο ότι θα εκτιμηθεί από τους σκληροπυρηνικούς παίχτες.
Audio Performance:
Output Signal-to-Noise Ratio (A-Weighted): 118 dB.
Input Signal-to-Noise Ratio (A-Weighted): 118 dB.
Output THD+N at 1kHz: 0.00039% (-108dB).
Input THD+N at 1kHz: 0.0003% (-110dB).
Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 46kHz.
Output/Input Full-Scale Voltage 2 Vrms (5.65 Vp-p).
Bus Compatibility:
PCI Express: PCI Express Rev.1.0a.
Maximum full 2.5Gbps bandwidth per direction and optimized latency for high-definition audio processing..
Compatible with X1, X4, X8, X1 6 PCI Express slots.
Main Chipset:
Audio Processor: ASUS AV100 High-Definition Sound Processor (Max. 192kHz/24bit).
24-bit D-A Converter of Digital Sources: Texas Instruments PCM1796*1 for Front-Out (123dB SNR, Max. 192kHz/24bit), Cirrus-Logic CS4362A*1 for other 6 channels (114dB SNR, Max.192kHz/24bit).
24-bit A-D Converter for Analog Inputs: Cirrus-Logic CS5381 x 1 (120dB SNR, Max. 192kHz/24bit).
High Fidelity Headphone Amplifier: Texas Instruments 6120A2*1 (120dB SNR, -117dB THD+N @ Vcc+-12V, RL=600Ω, f=1kHz).
Sample Rate and Resolution:
Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit.
Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit.
S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital.
ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz @16/24bit with very low latency.
I/O Ports:
Analog Output Jack: 6.30mm jack*1 (Headphone out); 7.1ch analog output (via bundled audio splitter cable).
Analog Input Jack: 6.30mm jack *1 (Shared by Line-In/Mic-In).
Other line-level analog input (for CD-IN/TV Tuner): Aux-In (4-pin header on the card).
Digital S/PDIF Output: High-bandwidth Coaxial/TOS-Link combo port supports 192KHz/24bit.
Front-Panel Header: Shared by Headphone out / 2 channels out / Microphone in.
Driver Features:
Operation System: Windows 7/Vista/XP/MCE2005.
Dolby Technologies: Dolby Digital Live, Dolby Headphone, Dolby Virtual Speaker, Dolby Pro-Logic II.
Smart Volume Normalizer: Normalizes the volume of all audio sources into a constant level and also enhances your 3D sound listening range and advantages in gaming.
Xear 3D Virtual Speaker Shifter: Virtual 7.1 speaker positioning.
FlexBass: Professional Bass Management/Enhancement system.
Other Effects: 10-band Equalizer/27 Environment Effects.
3D Sound Engines/APIs: DirectSound3D GX 2.0 & 1.0, EAX2.0, 1.0, DirectSound HW, DirectSound SW, OpenAL generic modes, 128 3D sounds processing capability.
DS3D GX2.5: GX 2.5 supports EAX gaming sound effects and Di rectSound 3D hardware enhanced functions for more games on Windows XP/Vista/7. (DirectX/DirectSound 3D compatible).
Αξεσουάρ: 1 x S/PDIF optical adaptors, 1 x 6.3mm to 3.5mm stereo adapter, 1 x 7.1 channel audio splitter cable, 1 x Driver CD, 1 x Quick Start Guide.
Εγγύηση: 3 χρόνια. DOA 7 ημερών
Sennheiser PC 350 Xense Edition headset General Features:
Cable length: 3m.
Connector plugs: 2 x 6.3mm.
Speaker type: Dynamic, 38mm, Nd magnet.
Frequency response: 10 - 26,000Hz.
Impedance: 150?.
Distortion: less than 0.1%.
Sennheiser PC 350 Xense Edition headset Microphone Features:
Frequency response: 50 - 16,000Hz.
Pick-up pattern: Noise canceling.
Sensitivity: -38dBV at 94dBSPL.
