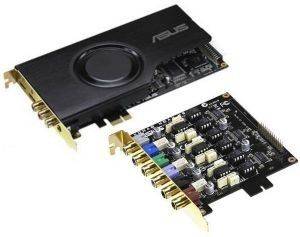

Η XONAR HDAV1.3 DELUXE της ASUS σας προσφέρει απαράμιλλα χαρακτηριστικά και υψηλής ποιότητας ηχητική απόδοση. Υποστηρίζοντας High Definition Audio μέχρι 192KHz/24Bit Sampling Rates και 120db Audio Quality μπορεί να χρησιμοποιηθεί ακόμη και για επαγγελματικούς σκοπούς.
Audio Performance:
Output Signal-to-Noise Ratio (A-Weighted): Εως 120 dB.
Output THD+N at 1kHz: 0.0004% (-108dB).
Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 46kHz.
Sample Rate Conversion Quality: Almost lossless, high-fidelity floating-point filters, which has: -140dB THD+N (typical value for 44.1K->48KHz, 24bit). 145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit).
Main Chipset:
Audio Processor: ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit).
24-bit D-A Converter of Digital Sources: Burr-Brown PCM1796 *4 (123dB SNR, Max. 192kHz/24bit).
24-bit A-D Converter for Analog Inputs: Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit).
Bus Compatibility:
HDMI (High-Definition Multimedia Interface): Compliant with HDMI v1.3a, HDCP 1.2 και DVI 1.0 compatible.
Sample Rate and Resolution:
Analog Playback Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit.
Analog Recording Sample Rate and Resolution: 44.1K/48K/96K/192KHz @ 16/24bit.
S/PDIF Digital Output: 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS, WMA-Pro.
S/PDIF Digital Input: 44.1K/48K/96K/192KHz @ 16/24bit.
ASIO 2.0 Driver Support: 44.1K/48K/96K/192KHz @ 16/24bit.
Video Specification:
Video Resolution: DTV Resolution: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p. PC Resolution: graphics, Sgraphics, XGA, SXGA, UXGA.
Enhanced Splendid HD Modes: Photo, Video, Gaming modes selectable (Gaming mode requires ASUS graphics card).
Color Depth and Range: Color depth: supports higher 24, 30, 36, 48-bit/per pixel color depths (RGB or YCbCr). Color range: supports broader xvYCC color space standard.
I/O Ports:
Analog Output Jack: RCA jack *8 .
Analog Input Jack: 3.50mm mini jack *1 (Line-In/Mic-In).
Other line-level analog input (for CD-IN/TV Tuner): CD-In, Aux-In (4-pin header on the card).
Digital S/PDIF Output: Coaxial and High-bandwidth Optical Combo Connector, Supports 192KHz/24bit.
Digital S/PDIF Input: Coaxial and High-bandwidth Optical Combo Connector, Supports 192KHz/24bit.
HDMI Input/Outut: HDMI 1.3 - In/Out Type A *1.
Driver Features:
Operation System: Windows Vista/XP(32/64bit)/MCE2005.
Dolby Technologies: Dolby Headphone, Dolby Virtual Speaker, Dolby Pro-Logic IIx, Dolby Digital Live.
DTS Technologies: DTS Connect (DTS Interactive Encoder and DTS Neo:PC).
Smart Volume Normalizer: Normalizes the volume of all audio sources into a constant level.
Xear 3D Virtual Speaker Shifter: Virtual 7.1 speaker positioning.
Magic Voice: Modifies the sound of your voice, for VOIP and online chat applications.
Karaoke Functions: Music Key-Shifting and Microphone Echo effects.
FlexBass: Professional Bass Management/Enhancement system.
Other Effects: 10-band Equalier/27 Environment Effects.
3D Sound Engines/APIs: Vista: DirectSound3D GX 2.5, DirectSound HW, DirectSound SW, A3D 1.0, OpenAL generic modes, 128 3D sounds processing capability, XP: DirectSound2.5 SW, A3D 1.0, OpenAL generic modes, 128 3D sounds processing capability.
DirectX: DirectX 9.0 ή μεγαλύτερο απαιτείται για 7.1ch έξοδο.
Τοποθέτηση: PCI Express
